Heavy Duty Tension Load Cell Delicate Structure With Resistance To Partial Load Ability

Heavy Duty Tension Load Cell Delicate Structure With Resistance To Partial Load Ability
Heavy Duty Tension Load Cell Delicate Structure With Resistance To Partial Load Ability

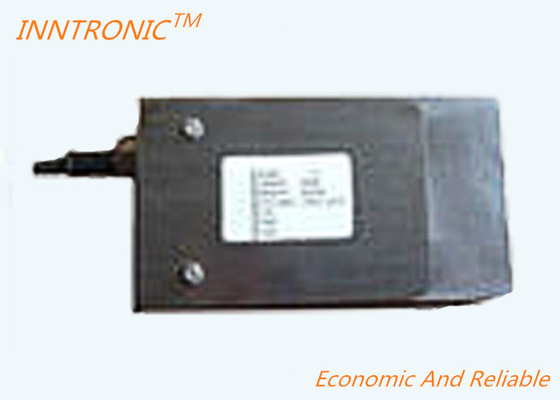

Large Image :  Heavy Duty Tension Load Cell Delicate Structure With Resistance To Partial Load Ability

Product Details:

Place of Origin: China
Brand Name: inntronic
Model Number: IN-51

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 15-30 days
Payment Terms: L/C
Detailed Product Description
TYPE: Single Point Load Cell Capacity: 10, 15, 25, 50, 100, 200lb
Output: 2mv/v Material: Stainless Steel Or Alloy Steel
Application: Platform Scale Interchangeable Brand: HBM
IP Protection Standard: IP68 Accuracy Grade: C3
Hysteresis: 0.02% Size: 4.63*2.5*0.7
High Light:

platform load cell

,

weighing machine using load cell

IN-51 Single Point Load Cell for platform scale



  •  Artech SS60210
  •  NCI Mark III
  •  NCI Mark IX
  •  Sensortronics 60051
  • RATED CAPACITY DIMENSIONS
    A B C D E F G H
    10-25LB 4.63 2.5 0.5 0.7 0.25 0.75 2.62 1/4-28UNF*0.50dp
    50-200LB 4.63 2.5 0.75 0.95 0.25 0.75 2.62 1/4-28UNF*0.51dp
  •
  • Items UNIT TECHNICAL DATA
    Capacities lb 10,15,25,50,100,200
    Rated output mV/V 2±10%
    Safe overload FS 150%
    Excitation voltage V 10-20 AC/DC
    Input resistance OHMS 385±10
    Output resistance OHMS 350±3
    Zero balance FS ±1.00%
    Seal type FS ENVIRONMENTALLY SEALED,POTTED,IP67
    Non-linearity FS ±0.03%
    Hysteresis FS ±0.02%
    Repeatability FS ±0.02%
    Creep FS ±0.03%
    Compensated temperature range ºC -10 ~ +40
    Temperature effect on zero FS/ºC ±0.02%
    Temperature effect on output FS/ºC ±0.001%
    Insulation resistance MEGOHMS >5000
    Load cell cable   4 conductor, 10 FT
    Load cell wiring   Red +EXC Black -EXC Green +SIG White -SIG Braid/yellow: shield
